Wrangler 3500


65 hp Cummins Engine

Skid Steer Attachment

Our most popular Mid-Range Loader

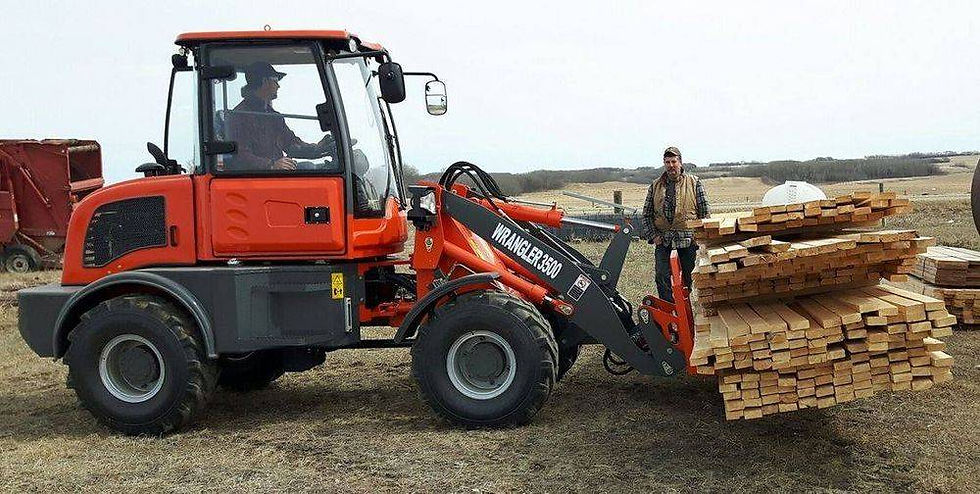

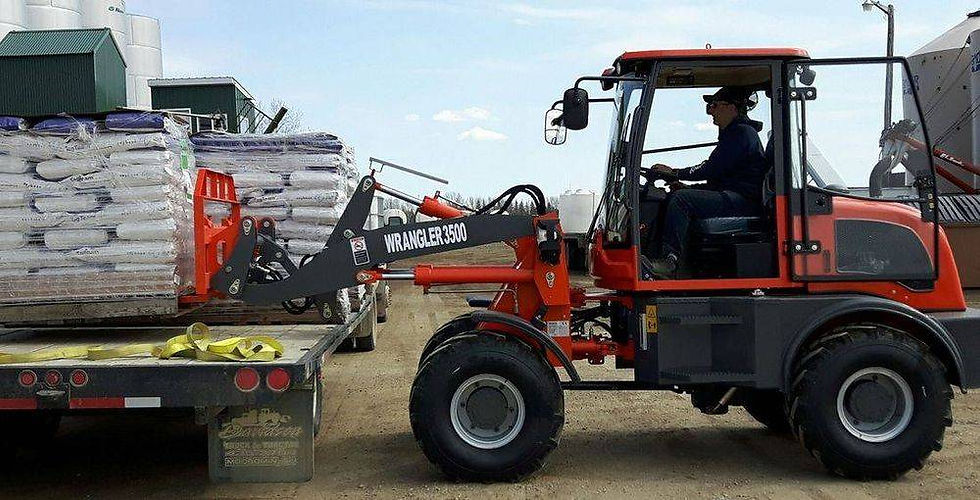

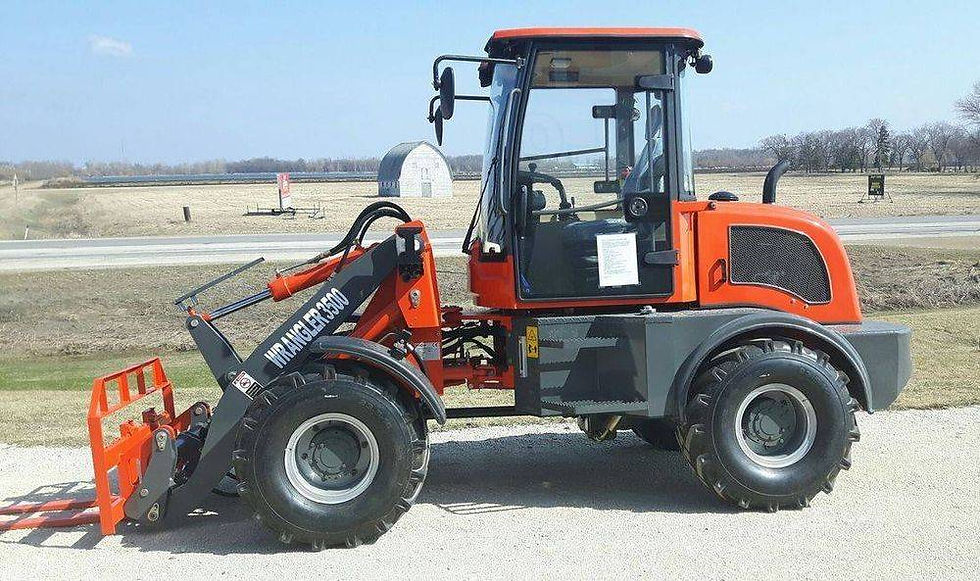

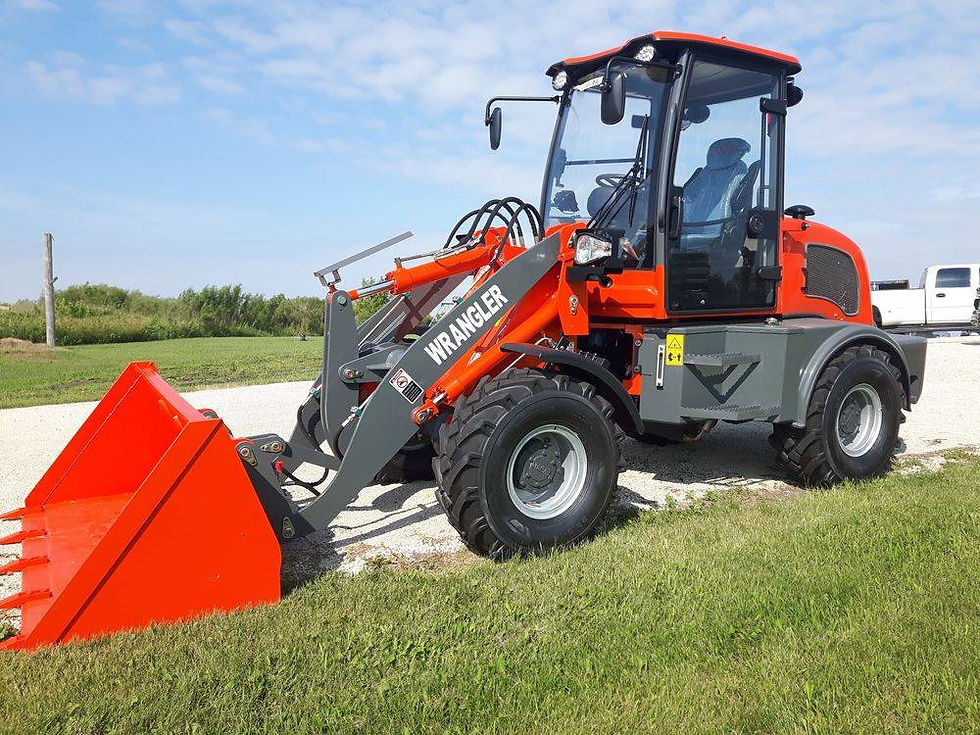

Wrangler 3500 Wheel Loader

WRANGLER 3500 Standard Equipment:

65 hp. Cummins (Tier 4) Engine. 4 wheel-Drive. ROPS & FOPS Cabin, Luxury Cabin Interior, E-Mark Seat, Adjustable Steering Wheel, 130W Heater, Quick Hitch, 23.5/70-16 Agricultural Tires, Hydraulic Outlet, Floating Function, Electrical Joystick, Planetary-reduction Axle, Hydraulic Brakes, Back-up Camera, Tipping Cabin, Disc-Brake System, Hydraulic -pressure Check System, Full LED lighting System.

bgImage

WRANGLER 3500 Specifications:


1.0 ENGINE DETAILS

  1. Model: CUMMINS QSF2.8. Tier 4 EPA Approved
  2. Rated Power: 65 HP
  3. Rated Speed: 2400 R/MIN (RPM)
  4. Engine Type: In-line arrangement, water-cooled, four-cycle diesel engine, 4 Cylinder
  5. Transmission: Fixed-Spindle 2 Speed Power Shift on Joystick

2.0 OPERATING SPECIFICATIONS:

  1. Bucket Capacity: 1 Yard. Width: 79 Inches
  2. Loading Capacity: 3525 Lbs.
  3. Operation Weight: 9038 Lbs.
  4. Lifting Time: 4.0 Seconds
  5. Driving Speed: 14 Mph
  6. Minimum Turning Radius: 17 feet
  7. Maximum Turning Angle: ±30°

3.0 OVERALL DIMENSIONS

1. Overall Length (Bucket on Ground Position): 17.3 feet.

2. Overall Width: 70 Inches

3. Ground to Top of Cab Height: 102 inches

4. Lift Height (to bucket pivot point) 10’ 2”. Lift Height to

bucket/pallet fork bottom 9’6”.

5. Dumping Height: 93 inches (at 45 degree discharge)

6. Minimum Ground Clearance: 11 inches

7. Wheel Base: 89 Inches

4.0 BRAKE SYSTEM

  1. Service Brake: Four Wheel Hydraulic Disk Brake
  2. Parking Brake: Hand Operated

5.0 TIRES

  1. Tires: 23.5/70-16



Options: ($Usd)

Pallet Forks $650 Grapple Bucket $1050 Snow Bucket $825 4 in 1 Bucket $1050

Hydraulic Snow Blade $1050 Snow Bucket with Wings $1200 Sand Spreader $1200

Adjustable Pallet Forks $1315 Auger (with Standard 16" drill) $1890

Bale Grab $800 Mixer Bucket $1400 Sweeper $1400 Euro Grapple Forks $1100

Extra Hydraulic Line $200
